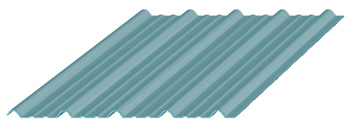

Tuff Rib Metal Roof/Wall Panel

The Tuff Rib corrugated panel is the most commonly used metal siding and roofing panel in the residential and agriculture market today. It is most commonly fastened with screws in the flats of the panel. Tuff Rib is available in 29 or 26 gauge painted or non painted material. If you are looking for the benefits of a metal roof at a very affordable price, Tuff Rib is the panel for you.

Tuff Rib Metal Roof/Wall

View 40 Year Finish Warranty

Color Chart

Product Information

  • 29 Gauge Painted Galvalume 40 Yr. Warranty
  • 29 Gauge Bare Galvalume 25 Yr. Warranty
  • 29 Gauge Painted No Warranty
  • 26 Gauge Painted Galvalume 40 Yr. Warranty
  • 26 Gauge Bare Galvalume 25 Yr. Warranty

Specifications

  • Ribs 3/4" Tall 9" on Center
  • 36" Overall Coverage
  • Sidelap with Anti-Siphon Groove
  • Screw Through Fastening System
  • Works Best on Solid Substrate or Purlins 24" o/c or Less

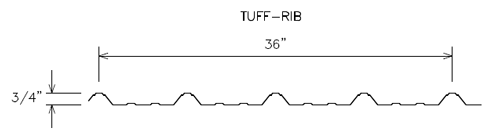

Panel Profile

Tuff Rib Metal Roof/Wall Panel Profile
