SuperLok® Roof Panels

SuperLok® is a mechanically field-seamed, vertical leg standing seam roof system that combines a 2” tall slim rib with exceptional uplift resistance. It is available in both 12-inch and 16-inch widths. SuperLok® has been designed to withstand the most rigorous weather conditions. SuperLok® can be installed directly over purlins or bar joists. SuperLok® does not require a solid substructure for support.

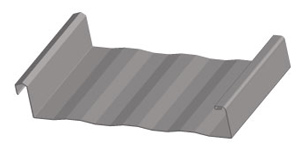

SuperLok® Metal Roofing Panel

SuperLok®Product Information

  • Coverage Width – 12”, 16”
  • Minimum Slope – ½:12
  • Panel Attachment – Concealed Fastening System; Low, High (fixed or floating), Utility (no insulation clearance)
  • Gauge – 24 (standard); 22 and 26 (optional)
  • Finishes – Smooth Striated (standard); Embossed Striated (optional)
  • Coatings – Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic

Panel Profiles

SuperLok® 12 Metal Roofing Panel Profile
